Full System Athletic Running Track For Jogging 13mm Thickness Soft Material

Full System Athletic Running Track For Jogging 13mm Thickness Soft Material

Full System Athletic Running Track For Jogging 13mm Thickness Soft Material

Product Details:

Place of Origin: China
Brand Name: Yuanyang Sports
Certification: ISO,SGS,CE,Rohs, ETC.
Model Number: YYTY-01

Payment & Shipping Terms:

Minimum Order Quantity: 500SQM
Price: Negotiable
Packaging Details: PU materials packed in drums , granules packed in poly bags.
Delivery Time: Within 5 days after payment
Payment Terms: T/T, L/C., Western Union, MoneyGram
Supply Ability: 80 Tons/Day
Contact Now
Detailed Product Description
Materials: Polyurethane Materials And Epdm Granules System: Full System
Thickness: 13mm As International Standard Color: Red, Green, Blue,etc.
Service Life: 6-8 Years After Application Product Name: Athletic Running Track



 Full System Athletic Track l Running Track l Track & Field l Jogging Track Building



Company information



1. Specialized in manufacturing sports courts & running track from 2006, total area 30000m2;
2. Largest auto manufacturing base in China, and annual output 50,000 tons;
3. Can produce more than 80 tons PU materials per day;
4. Dust-free manufacturing shop, environmental manufacturing technique.
5. One stop service to clients, from design, proposal , budget, shipment , technician support , installaiton , maintainence etc.



Production Line



Full System Athletic Running Track For Jogging 13mm Thickness Soft MaterialFull System Athletic Running Track For Jogging 13mm Thickness Soft MaterialFull System Athletic Running Track For Jogging 13mm Thickness Soft Material

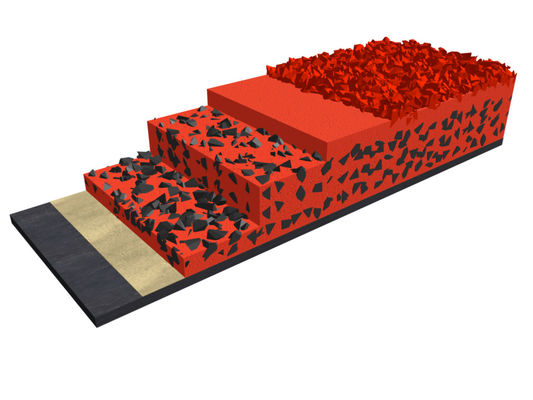

13mm thickness all weather fully cast in site full type polyurethane synthetic running track system equivalent to synthetic consist of 9mm thick resilient cushion layer of polyurethane (PU) cushion coating materials with few SBR granules and red ethylene propylene diene monomer( EPDM) granules size 2-3mm sprayed to permanently embedded on top of PU cushion layer .



Full System Athletic Running Track For Jogging 13mm Thickness Soft MaterialFull System Athletic Running Track For Jogging 13mm Thickness Soft Material



TECHNOLOGY INDEX

Property Requirement Testing Data Remark
Hardness , shao 45-60 50
Force Reduction,% ≧20 23 REFER TO SPECIFICATION INDEX GB/T14833-1993
Compression Recovery Rate % ≧95 97
Tensile Strength Mpa ≧0.7 0.8
Elongation ≧90 117
Fire Resistance 1 1

From : China National Sport Goods Quality Supervision Inspection Center

TEST REPORT

Test Item Standard Test Data Judge
Thickness mm ≥13 15 Standards
Force Reduction 35-50 36.9 Standards
Vertical Deformation 0.6-2.5 1.49 Standards
Tensile Strength Mpa ≥0.5 0.62 Standards
Elongation at Break % ≥40 74.2 Standards
Skid Resistance BPN20℃ ≥47 57 Standards
Flame Retardance Class 1 1 Standards
Conclusion All test item cater to GB/T 22517.6-2011 GB/T14833-2011 requirement

From : Sports Surface Testing Laboratory of Chinese Athletic Association









PU synthetic athletic tracks maintain the top position among the synthetic track systems. Manufactured in accordance with the IAAF quality criteria, these athletic tracks are suitable for every level of play – amateur, training and competition.

They meet and exceed the IAAF requirements of slip resistance, spike resistance, force reduction and vertical deformation. Their material composition has been developed in accordance with the requirements of the sport and incorporates a balance between non-slip qualities, shock absorption and speed. The IAAF certified range of products are ideal for national and international level competitions.



yuanyang sports' superior performance synthetic athletic tracks are fast, uniform and responsive and create the ideal conditions required for a runner. With high UV and weather resistance, these tracks provide permanent elasticity and are resilient. These high-grip and non-slip surfaces are usable within minutes after rain.



Full System Athletic Running Track For Jogging 13mm Thickness Soft MaterialFull System Athletic Running Track For Jogging 13mm Thickness Soft Material



Full System Athletic Running Track For Jogging 13mm Thickness Soft MaterialFull System Athletic Running Track For Jogging 13mm Thickness Soft Material



FAQ
1) Are you manufacturer or trader?
Manufacturer, we have one big production foundation in Zhongshan city, with 80 tons pu materials turnout per day.


2) What is the advantage of your factory?
Our products are odorless and non-toxic , we can offer materials for every kinds of SPU venues, running track.We have more than 13 years' development and production history


3) Any discount for PU materials ?
Normally, we would give few discount for our New customer. and we can offer few refound in the end of year on the basic of clients annuel sales amount.







Application



Yuanyang sports produced PU athletic running track surface have widely application ,like school safety playground, international athletic competition avenue, athletic trainning center, leisure area , park jogging track ,etc. and more.

   Full System Athletic Running Track For Jogging 13mm Thickness Soft MaterialFull System Athletic Running Track For Jogging 13mm Thickness Soft MaterialFull System Athletic Running Track For Jogging 13mm Thickness Soft MaterialFull System Athletic Running Track For Jogging 13mm Thickness Soft Material
