Zhongshan Yuanyang Sports Plastics Materials Factory Makes Sports More Safety
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Materials: | Polyurethane Materials And Epdm Granules | System: | Full System |
|---|---|---|---|
| Thickness: | 13mm As International Standard | Color: | Red, Green, Blue,etc. |
| Service Life: | 6-8 Years After Application | Certificated: | IAAF |
| High Light: | athletics race track,outdoor running track |
||
IAAF Certificate Sandwich System Stadium PU Running Track Manufacture
Company information
1. Specialized in manufacturing sports courts & running track from 2006, total area 30000m2;
2. Largest auto manufacturing base in China, and annual output 50,000 tons;
3. Can produce more than 80 tons PU materials per day;
4. Dust-free manufacturing shop, environmental manufacturing technique.
5. One stop service to clients, from design, proposal , budget, shipment , technician support , installaiton , maintainence etc.
Production Line
Sandwich System Running Track

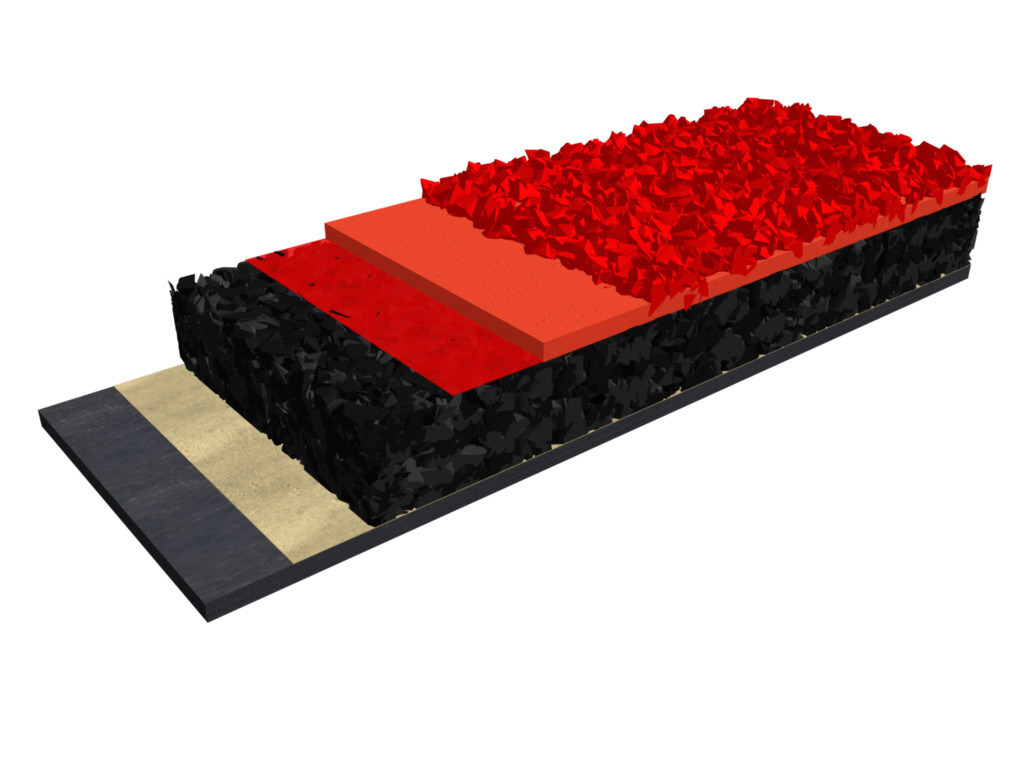

13mm thickness all weather fully cast in site sandwich type polyurethane synthetic running track system equivalent to synthetic consist of 9mm thick resilient cushion layer of polyurethane (PU) Binder bonded with SBR granules by paving machine and red ethylene propylene diene monomer( EPDM) granules size 2-4mm sprayed to permanently embedded on top of SBR layer in accordance to IAAF requirement.
TECHNOLOGY INDEX
| Property | Requirement | Testing Data | Remark |
| Force Reduction,% | ≧20 | 23 | REFER TO SPECIFICATION INDEX GB/T14833-1993 |
| Compression Recovery Rate % | ≧95 | 97 | |
| Tensile Strength Mpa | ≧0.7 | 0.7 | |
| Elongation | ≧40 | 75 | |
| Fire Resistance | 1 | 1 |
From : China National Sport Goods Quality Supervision Inspection Center
TEST REPORT
| Test Item | Standard | Test Data | Judge | |
| Thickness mm | ≥13 | 15 | Standards | |
| Force Reduction | 0℃ | 35-50 | 35.9 | Standards |
| 20℃ | 37.3 | Standards | ||
| Vertical Deformation | 0℃ | 0.6-2.5 | 1.69 | Standards |
| 20℃ | 1.83 | Standards | ||
| Tensile Strength Mpa | ≥0.4 | 0.54 | Standards | |
| Elongation at Break % | ≥40 | 67 | Standards | |
| Skid Resistance BPN20℃ | ≥47 | 60 | Standards | |
| Conclusion | All test item cater to IAAF certification requirement | |||
From : Sports Surface Testing Laboratory of Chinese Athletic Association
PU synthetic athletic tracks maintain the top position among the synthetic track systems. Manufactured in accordance with the IAAF quality criteria, these athletic tracks are suitable for every level of play – amateur, training and competition.
They meet and exceed the IAAF requirements of slip resistance, spike resistance, force reduction and vertical deformation. Their material composition has been developed in accordance with the requirements of the sport and incorporates a balance between non-slip qualities, shock absorption and speed. The IAAF certified range of products are ideal for national and international level competitions.
yuanyang sports' superior performance synthetic athletic tracks are fast, uniform and responsive and create the ideal conditions required for a runner. With high UV and weather resistance, these tracks provide permanent elasticity and are resilient. These high-grip and non-slip surfaces are usable within minutes after rain.
FAQ
1) Are you manufacturer or trader?
Manufacturer, we have one big production foundation in Zhongshan city, with 80 tons pu materials turnout per day.
2) What is the advantage of your factory?
Our products are odorless and non-toxic , we can offer materials for every kinds of SPU venues, running track.We have more than 13 years' development and production history
3) Any discount for PU materials ?
Normally, we would give few discount for our New customer. and we can offer few refound in the end of year on the basic of clients annuel sales amount.
